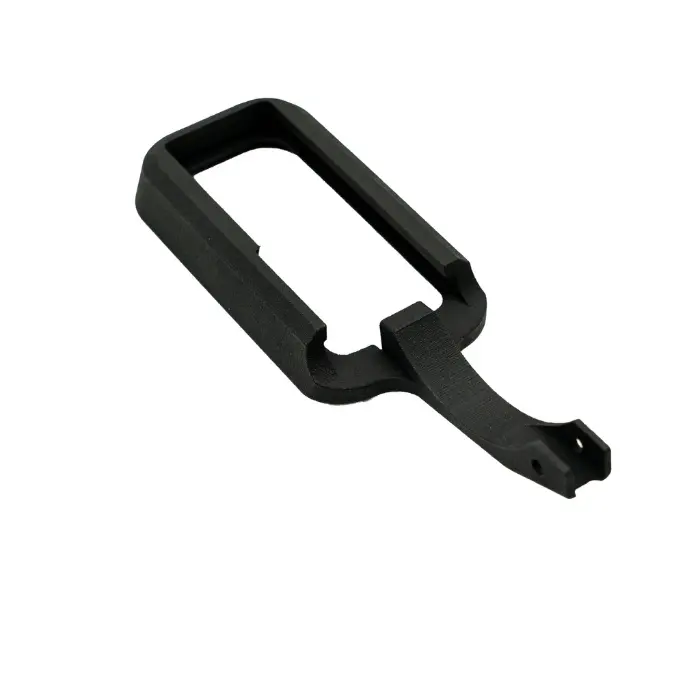

Vapor Concepts AR-15 Magwell

A one-piece flared magwell and trigger guard for MILSPEC forged AR-15 lowers, made in Bigfork, Montana. Check your lower before ordering: returns aren’t accepted for fit issues.
SKU: VC-AR15-MW-FRG
Availability: In stock
$34.95
i h
Buy now, pay later Available at checkout on orders over $150
Know Before You Order

Built for MILSPEC Forged AR-15 Lowers.

This magwell fits most MILSPEC forged AR-15 lower receivers without modification. It doesn't fit Aero Precision lowers with an integral magwell or other lowers with a built-in flared magwell, and billet lowers aren't guaranteed to fit. It isn't compatible with standard Magpul Gen 3 PMAGs.

Because of the material Vapor Concepts parts are made from, we can't accept returns for fit issues. Check your lower receiver before you order.

What Is the Vapor Concepts AR-15 Magwell?

It's a one-piece flared magwell and trigger guard for MILSPEC forged AR-15 lower receivers. It replaces your factory trigger guard and widens the opening at the bottom of the magazine well, so the magazine finds its way in faster on a reload. It's made by Shield Arms in Bigfork, Montana, using Multi Jet Fusion additive manufacturing, installs with the included hardware, and is covered by a lifetime warranty against manufacturer's defects.

  • Fits: most MILSPEC forged AR-15 lowers
  • Replaces: your factory trigger guard
  • Runs: Magpul PMAG Gen 2 and aluminum GI magazines
  • In the box: magwell with integrated trigger guard, installation hardware
Vapor Concepts

A Flared Magwell for the Forged Lower You Already Own.

Most flared magwells come machined into a billet lower. If you built on a standard forged lower, you didn't get one. This bolts one on.

The magwell and trigger guard are a single piece, so it takes the place of the guard you have now. The beveled opening gives the magazine a bigger target, which helps most when you're moving fast, wearing gloves or working in low light.

1 Piece: magwell and trigger guard
MJF Multi Jet Fusion
Forged MILSPEC AR-15 lowers
MT Made in Bigfork
Features

What It Does

  • Beveled Opening

    A larger, beveled insertion area guides the magazine into the well instead of the edge of the receiver.

  • Integrated Trigger Guard

    The trigger guard is built into the magwell, so there's no separate guard to fit and nothing extra hanging off the lower.

  • No Modification

    Fits most MILSPEC forged lowers as they are. No cutting, no machining, and the hardware comes in the box.

  • Made by Multi Jet Fusion

    Printed in our Bigfork shop with Multi Jet Fusion, which builds shapes a machined part can't, at a light weight.

Installation

Swap the Guard, Snug the Hardware

Remove your existing trigger guard and install the magwell with the included hardware, following the included instructions. Basic hand tools are all you need. Don't over-tighten the fasteners: damage from over-tightening or improper installation isn't covered by the warranty.

Compatibility

Will It Fit Your Rifle?

Check both your lower receiver and your magazines before you order.

Lower or Magazine Type Fits
MILSPEC forged AR-15 lowers Lower ✓
Aero Precision lowers with integral magwell Lower —
Billet lowers Lower Not guaranteed
Magpul PMAG Gen 2 Magazine ✓
Aluminum GI magazines Magazine ✓
Standard Magpul PMAG Gen 3 Magazine —

More parts made in our Bigfork shop: see all rifle parts.

Specifications

Fits Most MILSPEC forged AR-15 lower receivers
Doesn't fit Aero Precision lowers with integral magwells and other lowers with a built-in flared magwell; billet lowers not guaranteed
Magazines Magpul PMAG Gen 2, aluminum GI magazines; not standard Magpul PMAG Gen 3
Trigger guard Integrated; replaces the factory guard
Pistol grips Works with standard AR-15 pistol grips
Material Multi Jet Fusion (MJF) additive manufacturing material
Finish Standard MJF finish
Included Installation hardware and instructions
Install Basic hand tools; no modification to the lower
Made in Bigfork, Montana, USA
Warranty Lifetime warranty against manufacturer's defects; doesn't cover improper installation, over-tightening or abuse

About the MJF Material

Vapor Concepts parts are made with Multi Jet Fusion, an additive process that builds the part layer by layer in our Bigfork shop. It's light and tough, but it isn't aluminum: tighten the fasteners to snug, not past it. Because of the material, we can't accept returns for fit issues, and the warranty covers manufacturer's defects, not installation damage.

Questions

Vapor Concepts AR-15 Magwell FAQ

Will it fit my lower receiver?

It fits most MILSPEC forged AR-15 lowers without modification. If your lower is a standard forged receiver from a MILSPEC maker, it should fit.

Does it fit an Aero Precision lower?

Not one with an integral magwell. It also won't fit other lowers that already have a built-in flared magwell.

Does it fit billet lowers?

Not guaranteed. Billet lowers vary in their dimensions and trigger guard designs, and many already have a flared magwell machined in.

Which magazines work with it?

Magpul PMAG Gen 2 and aluminum GI magazines. It isn't compatible with standard Magpul PMAG Gen 3 magazines.

How do I install it?

Remove your existing trigger guard, then install the magwell with the included hardware using basic hand tools. Snug the fasteners; don't over-tighten. See our installation guides.

Will it interfere with my pistol grip?

No. It's designed to work with standard AR-15 pistol grips.

Can I return it if it doesn't fit?

No. Because of the material Vapor Concepts parts are made from, we can't accept returns for fit issues. Please confirm your lower receiver type before you order.

What is Multi Jet Fusion?

An additive manufacturing process that builds strong, precise parts layer by layer. It lets us make shapes that would be difficult or impossible to machine, at a light weight.

What is Vapor Concepts?

Our in-house brand of parts made with Multi Jet Fusion in Bigfork, Montana. See the Vapor Concepts line.

What's covered by the warranty?

Our lifetime warranty covers manufacturer's defects. It doesn't cover damage from improper installation, over-tightening or abuse.

Installation Help

Not sure how to install this product? Our step-by-step guides and video walkthroughs make it simple.

View Installation Guides →
