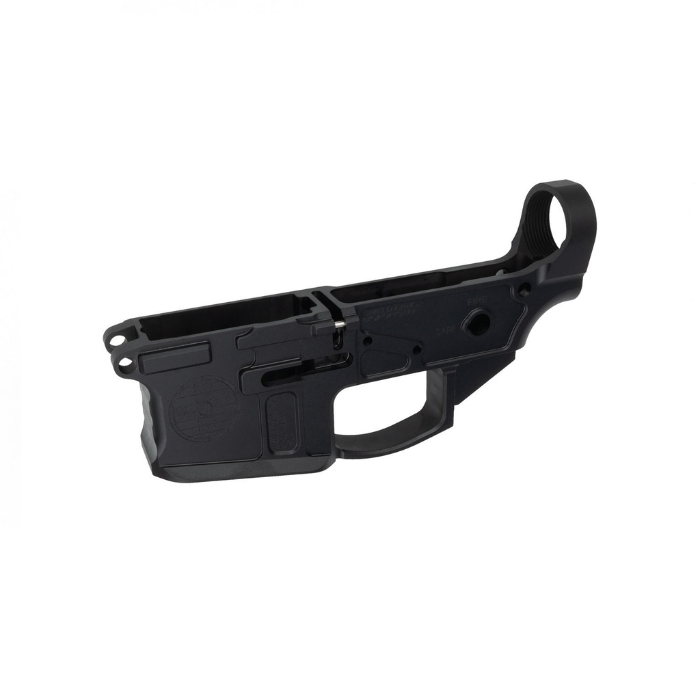

What is the Shield Arms SA-4 Non-Folding Stripped Billet Lower Receiver?
The Shield Arms SA-4 Non-Folding Stripped Billet Lower Receiver is a precision CNC-machined AR-15 lower receiver machined from 7075-T6 aircraft-grade aluminum billet, finished to Mil 8625 Type 3 Class 2 hard-coat anodizing, and marked "MULTI" for maximum caliber flexibility. Sold stripped and ready for your choice of lower parts kit, stock, and grip, it provides a tighter-tolerance, builder-friendly foundation for any AR-15 configuration—with a built-in upper tension screw and threaded bolt catch pin that make the build process cleaner than any standard forged lower on the market.
The Builder's Lower — Done Right
The Shield Arms SA-4 Non-Folding Stripped Billet Lower Receiver is designed for AR-15 builders who know exactly what they want and aren't willing to compromise on the foundation. CNC-machined from solid 7075-T6 aircraft-grade aluminum billet with mil-spec dimensions throughout, the SA-4 delivers the tighter tolerances and improved upper-to-lower fitment that billet machining makes possible—while remaining fully compatible with standard mil-spec lower parts kits, stocks, grips, and the vast majority of aftermarket AR-15 components.
What sets the SA-4 apart from standard stripped lowers isn't just the billet construction. It's the builder-first details: a threaded bolt catch pin hole that eliminates the roll pin punch work that marks up so many first builds, a built-in upper tension screw to dial out any upper-to-lower slop without aftermarket accessories, and a precision beveled magazine well that accepts all standard AR-15 magazines and feeds them cleanly. These are the details that matter when you're building a rifle you intend to trust.
Finished to Mil 8625 Type 3 Class 2 hard-coat anodizing, marked "MULTI" for caliber flexibility, and backed by Shield Arms' lifetime warranty, the SA-4 is the stripped lower for builders who want to build it their way—on a foundation that won't let them down.
Key Features
- 7075-T6 Aircraft-Grade Billet Construction: CNC-machined from solid 7075-T6 aluminum billet—not forged or cast—for tighter tolerances, improved upper-to-lower fitment, and a more consistent feel across the entire receiver geometry
- Mil-Spec Dimensions: Fully compatible with standard mil-spec lower parts kits, buffer tubes, stocks, grips, and the majority of aftermarket AR-15 components—build your way without compatibility surprises
- Mil 8625 Type 3 Class 2 Hard-Coat Anodized Finish: Matte black hard-coat anodizing to the military standard for aluminum—surface hardness comparable to case-hardened steel, with corrosion protection that holds up in any environment
- Upper Tension Screw: Threaded hole behind the grip screw with hardware included; lets you dial out vertical slop between upper and lower without purchasing an aftermarket accu-wedge or shim—already there, already threaded, ready to use
- Threaded Bolt Catch Pin: Threaded bolt catch pin hole with hardware included; eliminates the roll pin installation that damages receivers and frustrates builders, making assembly and future service straightforward and clean
- Precision Beveled Magazine Well: Machined mag well with beveled feed lip for fast, reliable magazine changes; accepts all standard AR-15 magazines
- "MULTI" Caliber Marking: Marked MULTI to support the widest range of AR-15 caliber uppers—5.56 NATO, .223 Wylde, .300 Blackout, 6.5 Grendel, and more
- Broad Parts Compatibility: Compatible with most standard AR-15 components and the majority of aftermarket lower parts—trigger groups, safety selectors, grips, stocks, buffer systems, and more
- Made in USA: Manufactured in Bigfork, Montana, with American materials and precision CNC machining throughout
- Lifetime Warranty: Covered by Shield Arms' 100% lifetime warranty against defects in materials and workmanship
Why Billet? Why the SA-4?
The Tension Screw Difference: Even the best-fitted AR-15 uppers and lowers can develop some vertical play over time. Most shooters fix this by adding an aftermarket accu-wedge or similar accessory. The SA-4 solves this at the receiver level: a threaded hole behind the grip screw accepts the included hardware, letting you apply upward tension on the upper receiver and eliminate slop entirely—no additional parts, no aftermarket accessories required.
Mil 8625 Type 3 Class 2 Anodizing: The SA-4's hard-coat anodized finish meets MIL-A-8625 Type III Class 2—the same specification used on U.S. military aluminum components. Type III hard-coat anodizing is significantly more wear-resistant than the Type II anodizing found on most commercial receivers, providing a surface hardness comparable to case-hardened steel and long-term corrosion resistance regardless of operating conditions.
Technical Specifications
| Specification |
Details |
| Model |
SA-4 Non-Folding Stripped Billet Lower Receiver |
| Material |
7075-T6 Aircraft-Grade Aluminum Billet |
| Manufacturing Method |
CNC Machined from Solid Billet |
| Finish |
Matte Black Hard-Coat Anodized — Mil 8625 Type 3 Class 2 |
| Dimensions |
Mil-Spec |
| Caliber Marking |
MULTI |
| Weight |
8.4 oz |
| Magazine Compatibility |
Standard AR-15 magazines; precision beveled feed lip |
| Upper Tension Screw |
Threaded hole with hardware included (behind grip screw) |
| Bolt Catch Pin |
Threaded hole with hardware included |
| Parts Compatibility |
Compatible with most standard AR-15 and aftermarket lower parts kits, stocks, grips, and buffer systems |
| Configuration |
Non-folding; stripped (no lower parts kit included) |
| Manufacturing |
Made in USA — CNC Machined, Bigfork, Montana |
| Warranty |
Lifetime |
Build Considerations
What You'll Need to Complete Your Build
The SA-4 ships stripped—the receiver only, with the upper tension screw and threaded bolt catch pin hardware included. To complete a functional lower, you will need a standard AR-15 lower parts kit (LPK), a buffer tube assembly (buffer tube, buffer, and spring), and your choice of grip and stock. All of these components are available from Shield Arms and from most major AR-15 parts suppliers. Because the SA-4 is built to mil-spec dimensions and is compatible with most standard and aftermarket AR-15 lower parts, there are no proprietary components required.
Caliber Flexibility
The SA-4 is marked "MULTI" and is compatible with the full range of standard AR-15 upper receivers and calibers. Whether you're building a 5.56 NATO duty rifle, a .300 Blackout suppressor host, a 6.5 Grendel precision build, or a .223 Wylde competition rifle, the SA-4 stripped lower provides the right foundation without locking you into a single caliber or configuration. Swap uppers as your needs evolve—the lower stays the same.
Assembly Tips
The SA-4's threaded bolt catch pin eliminates one of the most frustrating steps in AR-15 lower assembly. Rather than driving a roll pin with a punch and block—which frequently leaves marks on new receivers—the threaded design installs cleanly with the included hardware and a standard hex driver. The upper tension screw installs similarly and can be adjusted at any time after assembly. A standard mil-spec lower parts kit and basic hand tools are all that's required to complete the build.
Frequently Asked Questions
What is the Shield Arms SA-4 Non-Folding Stripped Billet Lower Receiver?
It is a serialized AR-15 lower receiver CNC-machined from 7075-T6 aircraft-grade aluminum billet, finished to Mil 8625 Type 3 Class 2 hard-coat anodizing, and marked MULTI. It ships stripped—without a lower parts kit, buffer system, grip, or stock—and is ready for the builder to complete with their choice of components. It includes hardware for the built-in upper tension screw and threaded bolt catch pin.
What parts do I need to complete the SA-4 stripped lower?
To build a functional lower, you will need: a standard AR-15 lower parts kit (LPK), a buffer tube, buffer, and buffer spring, and your choice of grip and stock. All components are standard mil-spec AR-15 parts available from Shield Arms and most major suppliers. No proprietary parts are required.
What calibers is the SA-4 compatible with?
The SA-4 is marked MULTI and is compatible with any standard AR-15 upper receiver caliber, including 5.56 NATO, .223 Wylde, .300 Blackout, 6.5 Grendel, .458 SOCOM, and others built on the standard AR-15 upper platform. If the upper receiver is mil-spec, it will pair with the SA-4.
What is the upper tension screw and do I need it?
The SA-4 includes a threaded hole behind the grip screw with hardware included. This upper tension screw allows you to apply upward pressure against the upper receiver, eliminating any vertical play—commonly called "upper rattle"—between upper and lower. It's not required to build or run the rifle, but it's a useful feature for shooters who want a tight, slop-free fit without purchasing an aftermarket accu-wedge. The hardware is included; installation takes seconds.
What is the threaded bolt catch pin and how does it work?
Standard AR-15 lowers use a roll pin to retain the bolt catch, which must be driven in with a punch and lower block—a step that frequently mars the finish on new receivers. The SA-4 replaces this with a threaded hole and included hardware that installs cleanly with a hex driver, with no punch required. It makes the initial build cleaner and makes future disassembly and service significantly easier.
What is the difference between the SA-4 Non-Folding Stripped Lower and the Shield Arms FLR?
The SA-4 Non-Folding Stripped Lower is a traditional fixed-configuration stripped receiver for builders who want full control over every component in their build. The Shield Arms FLR (Folding Lower Receiver) is Shield Arms' patented integrated folding AR-15 lower—the first on the market that requires no aftermarket folding adapter. If compact storage and transport are priorities, the FLR is worth a close look.
Is the SA-4 serialized and subject to FFL transfer?
Yes. As a stripped lower receiver, the SA-4 is a serialized firearm under federal law and must be transferred through a licensed FFL dealer in accordance with all applicable federal, state, and local regulations. Ensure you understand the laws in your jurisdiction before purchasing.
Is the SA-4 compatible with aftermarket lower parts kits and components?
Yes. The SA-4 is compatible with most standard AR-15 lower parts kits and the majority of aftermarket AR-15 lower components. Standard mil-spec trigger groups, safety selectors, bolt catches, magazine catches, grips, buffer tubes, and stocks all install without modification.
Is the SA-4 made in the USA?
Yes. The SA-4 Non-Folding Stripped Billet Lower Receiver is manufactured at Shield Arms' facility in Bigfork, Montana, using American materials and precision CNC machining.
What warranty does the SA-4 carry?
The SA-4 is covered by Shield Arms' 100% lifetime warranty against defects in materials and workmanship. If the receiver fails due to a manufacturing defect, Shield Arms will replace it at no charge.
Who Should Buy the SA-4 Non-Folding Stripped Billet Lower Receiver
- Custom AR-15 Builders: Shooters who want to specify every component in their build and need a precision billet foundation that won't limit their choices or introduce compatibility issues
- Precision Build Enthusiasts: Builders prioritizing tight upper-to-lower fitment and harmonic consistency—the SA-4's billet construction and built-in tension screw deliver a level of fit that standard forged lowers can't match
- Multi-Caliber Shooters: Owners running multiple uppers on a single lower who need the "MULTI" marking and mil-spec dimensions to support the broadest possible range of upper receiver configurations
- First-Time Builders: Shooters tackling their first AR-15 lower build who will appreciate the threaded bolt catch pin—it eliminates the most intimidating and damage-prone step in standard AR-15 lower assembly
- Law Enforcement and Military: Officers and service members building a duty rifle to their own component specification on a receiver finished and dimensioned to military standards
- Competitive Shooters: 3-Gun, USPSA, and service rifle competitors building a division-legal lower with a precision billet foundation and the flexibility to run any legal trigger, stock, or grip configuration
Made in Montana. Backed for Life.
Every Shield Arms product starts and ends in Bigfork, Montana—designed, machined, and inspected by people who shoot what they make. The SA-4 Non-Folding Stripped Billet Lower Receiver is no different. We build it to the standard we'd put in our own rifles, finish it to the same spec the military demands, and back it with a 100% lifetime warranty against defects in materials and workmanship. If it fails, we replace it. No hoops. No hassle.
Your build starts with the right lower. Make it the SA-4.
Related Products & Accessories
- Shield Arms FLR (Folding Lower Receiver) — Shield Arms' patented integrated folding AR-15 lower; the first on the market requiring no aftermarket adapter, for shooters who need compact storage and transport capability
