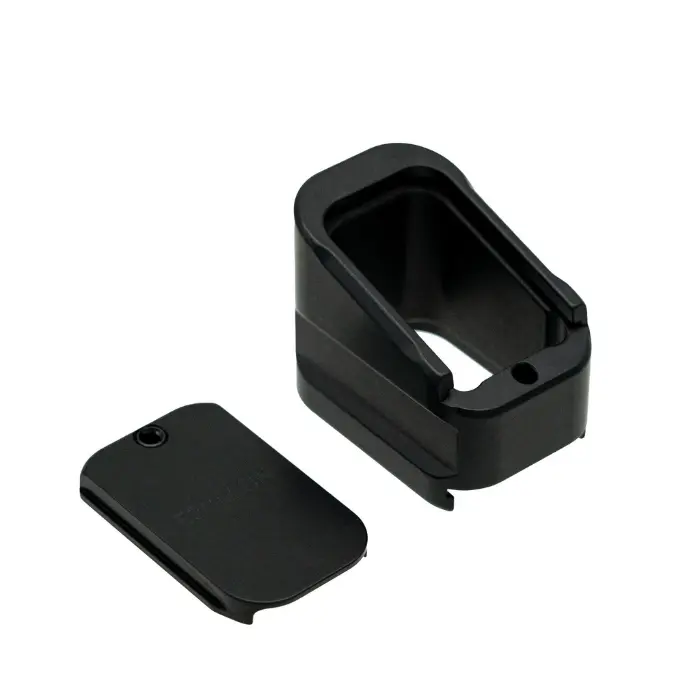

Springfield Echelon +5 Magazine Extension

A billet aluminum +5 extension that takes a factory Springfield Echelon 17-round magazine to 22 rounds of 9mm. It runs on your factory spring, so there’s nothing else to buy.
SKU: ECH-ME-5
*
  • Not available
  • Not available
  • Not available
  • Not available
  • Not available
  • Not available
Availability: In stock
$39.95
i h
Buy now, pay later Available at checkout on orders over $150
Compatibility

Fits Factory Springfield Echelon 17-Round Magazines.

This extension replaces the base pad on a factory Springfield Armory® Echelon™ 17-round 9mm magazine. It doesn't fit aftermarket magazines or magazines for other Springfield pistols. It runs on the magazine's factory spring, so there's no new spring to buy. Capacity laws vary by state and city; check yours before you order.

What Is the Shield Arms Springfield Echelon +5 Magazine Extension?

It's a billet aluminum base pad extension that takes a factory Springfield Echelon 17-round magazine to 22 rounds of 9mm. It works with the magazine's factory spring, has an easy-access floor plate for cleaning without removing the extension, and has index cuts for a better grip from a pouch. Six Type II anodized colors, machined in Bigfork, Montana, with a lifetime warranty.

Springfield Echelon +5

22 Rounds From Your Echelon. Same Spring.

The Echelon's factory magazine holds 17. This extension swaps in for the base pad and takes it to 22, and it's built to run on the spring that's already in the magazine. Nothing else to buy.

A common setup is a flush factory magazine in the pistol and a 22 on the belt, or 22s across the board for the range. Put the factory base pad back on, and the magazine is back to 17.

22 Rounds in an Echelon mag
+5 Over the factory 17
0 New springs needed
USA Machined in Bigfork, MT
Features

Machined From Billet, Built to Service

  • Uses the Factory Spring

    Built to run on the Echelon magazine's own spring, so the install is a base pad swap and nothing more.

  • Easy-Access Floor Plate

    Reach the spring and follower for cleaning or service without taking the extension off the magazine.

  • Index Cuts

    Cuts on the extension body give you a better grip when you pull the magazine from a pouch.

  • Billet 6061 Aluminum

    Machined from billet aluminum in Bigfork, Montana, and finished with a Type II anodize.

Capacity

17 From the Factory. 22 With Ours.

Five more rounds of 9mm on the factory Echelon magazine. The magazine stays a factory magazine. Only the base pad changes.

Factory magazine capacity shown for comparison. Capacity laws vary by state and city. Check yours before you buy.

Installation

Swap the Base Pad. Keep the Spring.

Take the factory base pad off your Echelon magazine, then reassemble with the Shield Arms extension in its place, using the magazine's own spring. Follow the included instructions for safe, correct installation, and find step-by-step help on our installation guides page. Rather skip the install? Order it pre-installed on a factory Echelon magazine.

Compare

Extension or Pre-Installed?

Upgrade the factory magazines you already own, or get a complete magazine ready to load.

Option Magazine Rounds Ready to Load
Echelon +5 Extension (this page) Your factory mag 22 —
Echelon +5 Pre‑Installed Included 22 ✓

Extensions for Glock®, CZ, S&W and Springfield: see every mag extension.

Specifications

Adds 5 rounds of 9mm (factory 17-round magazine to 22)
Fits Factory Springfield Armory® Echelon™ 17-round magazines
Doesn't fit Aftermarket magazines, magazines for other Springfield pistols
Spring Uses the magazine's factory spring; no new spring needed
Overall length 141.25mm, magazine with extension installed
Material Billet 6061 aluminum
Finish Type II anodized: Black, Red, Grey, Mud, ODA Green or Gold
Floor plate Easy access, no need to remove the extension for cleaning
Grip Index cuts for pulling from a pouch
Made in Bigfork, Montana, USA
Warranty Lifetime warranty on the extension. No spring is included, so Spring for Life doesn't apply.

Six Anodized Colors

Every color is Type II anodized over billet 6061 aluminum. Pick yours from the Color menu.

ODA Green was first made for a deployed Special Forces Operational Detachment Alpha team. We still offer it in honor of Special Forces teams around the world and donate a portion of every ODA Green sale to the Green Beret Foundation.

Mud: our Mud anodize shade changed slightly in 2025. Mud items bought before then may not be an exact match to the current shade.

Black Red Grey Mud ODA Green Gold
Questions

Springfield Echelon +5 Extension FAQ

Will it fit my Echelon magazine?

It fits factory Springfield Echelon 17-round magazines and takes them to 22. It doesn't fit aftermarket magazines or magazines for other Springfield pistols.

Do I need a new spring?

No. The extension is built to work with the factory Echelon magazine spring, so you reuse the one you have.

How do I install it?

Remove the factory base pad and reassemble the magazine with the Shield Arms extension in its place, using the factory spring. See our installation guides for step-by-step help.

Do I have to remove it to clean the magazine?

No. The easy-access floor plate opens to the spring and follower with the extension still on the magazine.

Can I go back to 17 rounds?

Yes. Put the factory base pad back on. The extension makes no permanent change to the magazine, so keep your original base pad.

Can I use it in competition?

The magazine measures 141.25mm overall with the extension installed. Magazine length and capacity rules vary by organization and division and change over time, so check your division's current rulebook before a match.

Will it fit my magazine pouches?

The extended magazine is longer than a factory one. Check that it seats in your magazine pouches before you rely on it.

Extension or pre-installed?

Buy the extension to upgrade Echelon magazines you already own. Buy the pre-installed version to get it already fitted to a new factory magazine.

What's ODA Green?

A green anodized finish first made for a deployed Special Forces team. A portion of every ODA Green sale goes to the Green Beret Foundation.

What's covered?

A lifetime warranty on the extension against defects in materials and workmanship. It runs on your factory spring and doesn't include one, so Spring for Life doesn't apply.

ODA Green

Used on: magazine extensions, magwells

ODA's (Operational Detachment Alpha) are the boots on the ground operational teams of a Special Forces Group. This color began as a special run for a deployed ODA. In continued support we have decided to continue the color as a standard offering and donate a portion of the proceeds to The Green Beret Foundation. Finish is anodized in green.

QPQ Nitrocarburizing Surface Treatment

Used on: magazines, barrels, slides

QPQ Nitrocarburizing is a type of surface treatment used to enhance the durability and corrosion resistance of metal parts. The process involves heating the metal in a controlled environment, where nitrogen and carbon are introduced to the surface of the metal. This forms a thin layer of a hard compound called "nitrides," which increase the surface hardness of the metal.

During the QPQ Nitrocarburizing process, the metal is immersed in a special salt bath and heated to high temperatures. The salt bath contains a mixture of chemicals that release nitrogen and carbon, which penetrate the surface of the metal. The process is carefully controlled to ensure that the nitrogen and carbon penetrate to a specific depth, creating a uniform layer of nitrides on the metal's surface.

The resulting nitride layer provides many benefits to the metal parts, including increased hardness, wear resistance, and corrosion resistance. This treatment helps to increase the lifespan and durability of metal parts, making them more reliable and long-lasting.

Any “scuffing” you see in the surface finish is completely normal, and will not affect the durability or corrosion resistance of the steel.

Electroless Nickel Plating

Used on: magazines

Silver electroless plating offers superior electrical conductivity and corrosion protection with excellent deposit uniformity and adhesion properties. This bright, reflective finish provides outstanding solderability and contact resistance while maintaining the consistent thickness and coverage that electroless plating processes are known for. Black electroless nickel plating provides these same exceptional deposit properties - including lubricity, hardness, and corrosion resistance - but with a fully conductive and uniform black surface finish that combines superior performance with an attractive dark appearance.

This item is controlled for export by the International Traffic in Arms Regulations (ITAR). Please check your state and local laws regarding magazine capacity restrictions.

Freedom Restricted States

If you live in a state that restricts magazine capacity we cannot ship to you unless you are law enforcement or otherwise exempt. If you are exempt from your state's ban please send us a copy of your documentation or official email to [email protected]. Please include your order number.

If you purchase from a ban state and you are NOT exempt, we will cancel your order and charge you a 5% cancellation fee.

Notice

GLOCK® is a federally registered trademark of GLOCK, Inc. and is one of many trademarks owned by GLOCK, Inc. and GLOCK Ges.m.b.H.  Neither Shield Arms nor this site are affiliated in any manner with, or otherwise endorsed by GLOCK, Inc. or GLOCK Ges.m.b.H.  The use of "GLOCK" on this and associated pages on our website is merely to advertise the sale of GLOCK® pistols, parts, or components. For additional genuine GLOCK, Inc. and GLOCK Ges.m.b.H products and parts, visit www.glock.com.

Products specifications
Firearms Manufacturer Springfield Armory
Firearms Model Echelon
Installation Help

Not sure how to install this product? Our step-by-step guides and video walkthroughs make it simple.

View Installation Guides →
